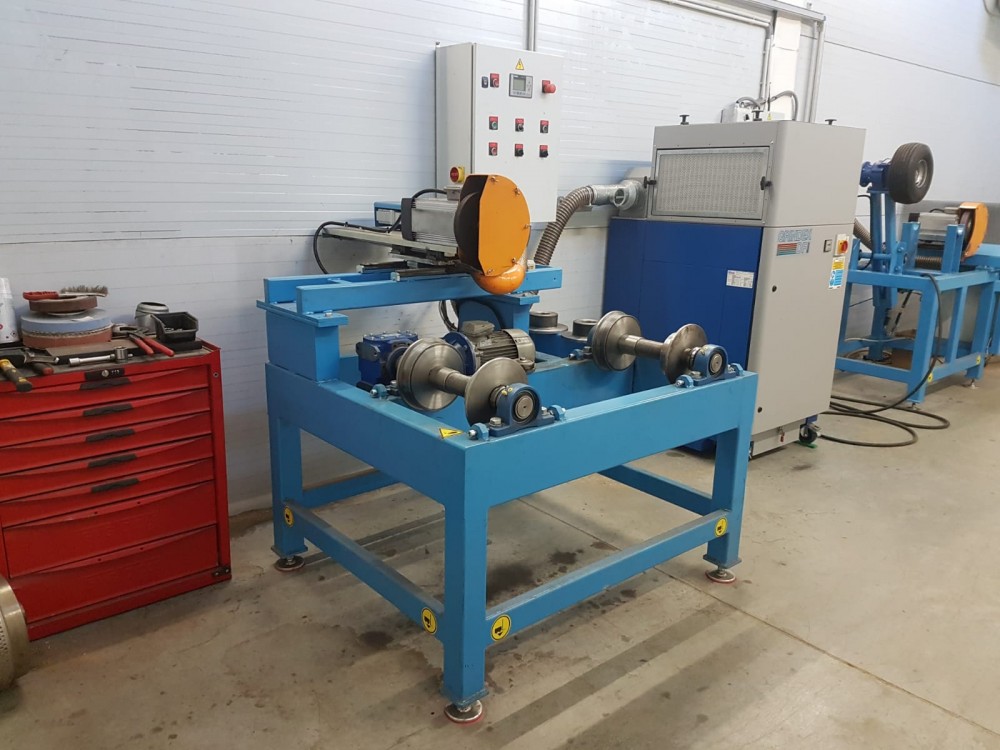

Grinding machine for pellet press matrix
31.07.2019
Technical specifications:
- Grinding width of the matrix - 200 mm (other individual solutions can be offered).
- Grinding diameter of the matrix - outer 1015 mm, inner 762 mm (other individual solutions can be offered).
- Grinding thickness of the matrix per cycle - 1/100 mm or 4/100 mm. The required number of cycles is adjustable.
- Total width of the unit - up to 1000 mm.
- Total length of the unit - up to 1400 mm.
- Total height of the unit - up to 1500 mm.
- Total weight of the unit - 450 kg.
- Electrical connection of the unit - 380V, 50Hz, 3 phases.
